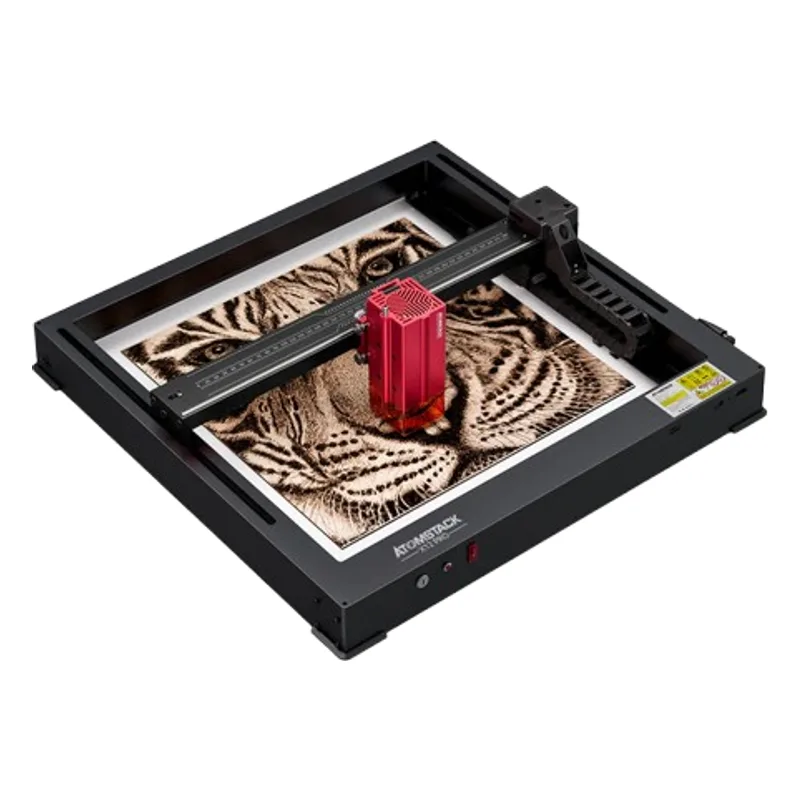

ATOMSTACK X12 PRO

What the ATOMSTACK X12 PRO can make

The ATOMSTACK X12 PRO is a diode laser engraver: its blue laser engraves and cuts wood, plywood, leather, paper, cardboard, fabric and dark or opaque acrylic, and marks coated or painted metal. It cannot cut clear or blue acrylic, which lets blue light through, and bare metal needs far more power or a different laser.

It has an optical output of 50 W, a work area of 365 × 305 mm (14.4 × 12 in) and a top engraving speed of 600 mm/s.

The brand states that it cuts up to 20 mm of wood or plywood; thicker material takes several passes, and results depend on the material and air assist.

It works with LightBurn and LaserGRBL software.

In the United States the ATOMSTACK X12 PRO sells for $229, below the median of $399 across 86 diode laser engravers with a US price, among the more affordable models.

ATOMSTACK X12 PRO safety and compliance

The brand's listing does not state the ATOMSTACK X12 PRO's laser class. Open-frame diode lasers are usually Class 4: use laser safety glasses rated for the wavelength, and never leave the machine running unattended.

Every laser engraver makes smoke and fumes: run it with an exhaust to the outdoors or a fume purifier. Never cut PVC or vinyl, which release corrosive chlorine gas.

The brand states FDA compliance: laser products sold in the United States must meet the FDA's laser performance standard (21 CFR 1040.10) and be reported to the FDA, which issues an accession number.

Other compliance the brand states: CE (the manufacturer's declaration of conformity with EU product rules); FCC (US authorisation for the electronics' radio-frequency emissions); RoHS (restriction of hazardous substances in electronics (EU)).
